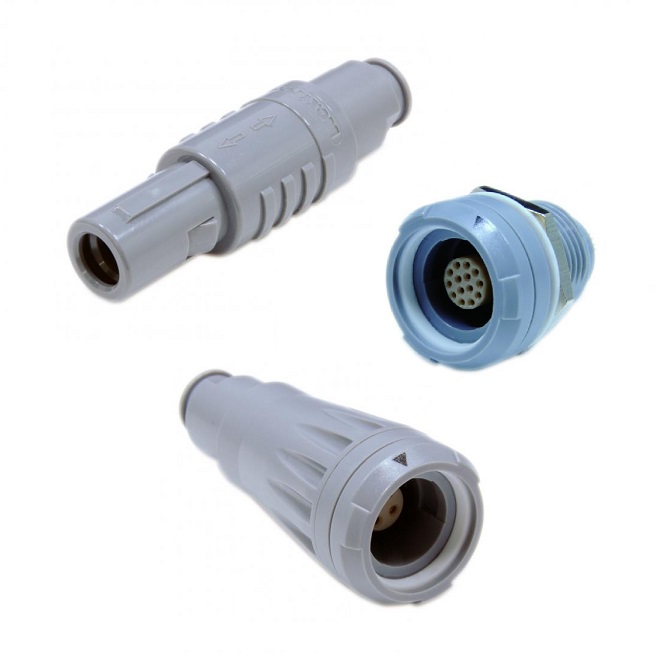

Plastic Snaplatch 1P Watertight Series
Plastic Snaplatch 1P Watertight Series
Main Features:
- Locking system: Push-Pull
- Multipole 2 ~ 14 contacts
- Solder cup contacts
- Touch & scoop proof
- Multiple key options to avoid cross-mating
- Cable diameter: 2.7mm ~ 6.5mm
- Outer Shell: PSU/PEI UL 94V-0
- Insulator: Polyetheretherkeytone UL 94V-0 (Peek)
- Contact: Copper alloy plating Au
- IP rating: IP64 & IP67 when mated
- Working temperature: PSU/PEI -50 ℃ ~+90℃
- Mating cycle: > 2000 cycles
