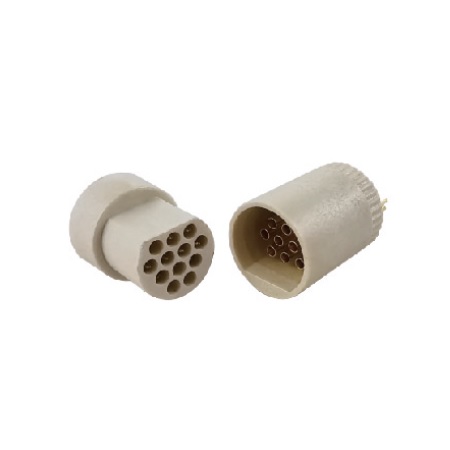

Micro Series
Micro Series
Main Features:
- Max. 12 contacts Flex-pin
- Solder contacts
- Temp. range: -55°C ~ 250°C
- Cable size: ø1.3 ~ ø4.4 mm
- Current rating: 1.5 ~ 30A
- Dielectric withstanding voltage: 0.6 ~ 2.4 kV rms
- Insulation resistance: 10¹²Ω
- Durability: >5,000 cycles
- Shielding: >75dB at 10Mhz, >40dB at 1Ghz
