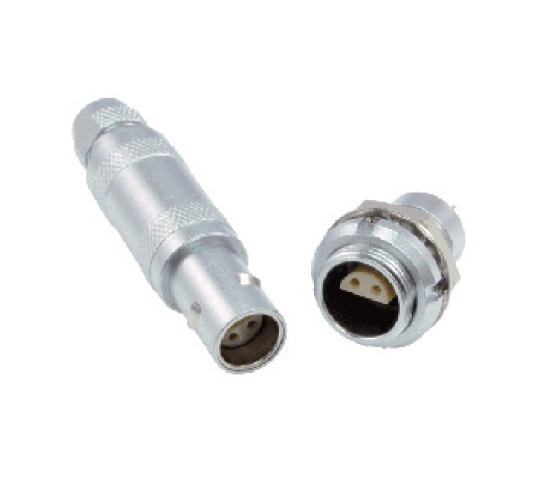

Metal Snaplatch S Series

Metal Snaplatch S Series

Main Features:

  • Push-Pull self-latching
  • 1 size
  • 2 to 6 contacts
  • Solder, print & crimp contacts
  • Temp. range: -55°C to 250°C
  • Cable size: ø1.3 to ø4.4 mm
  • Current rating: 1.5 to 30A
  • Dielectric withstanding voltage: 0.6 to 2.4 kV rms
  • Insulation resistance: 10¹²Ω
  • Durability: >5,000 cycles
  • Shielding: >75dB at 10Mhz, >40dB at 1Ghz
