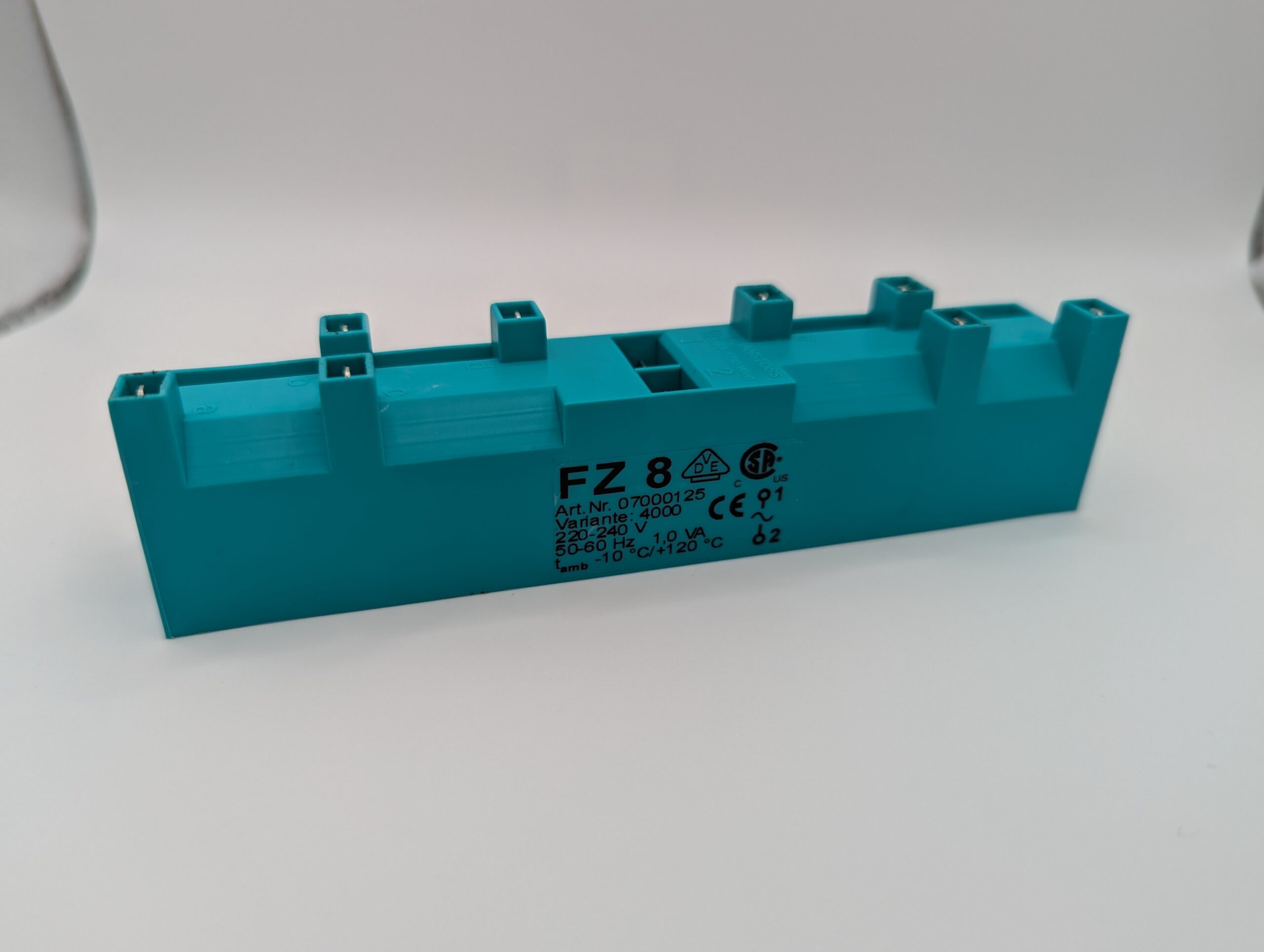

FZ 8-4000 [07000125]
For Application Advice
Please Call
Please Call
- 01684 566163
Performance
| Repetitive Spark | (230 V) 3 Hz +60 % – 10 % |
| Outlets | (a , h) 8 |
| Main Voltage | (1,2) 220-240 V +10% -15% |
| Power Consumption | max. 1,0 VA |
| Live Time | min. 1.500.000 ignitions |
| Spark Gap | 8 x max. 4 mm |
| Main Frequency | 50 – 60 Hz |
| Ambient Temperature | – 10°C – +120 °C |
| Weight | ca. 150 g |
| max. Temperature Mounting | + 150 °C |
| Ignition Cable | Length: max. 1 mm Cross section: min. 0,3 mm2 Isolation: min. 15 kV |
