SB-062 Type
SB-062 Type

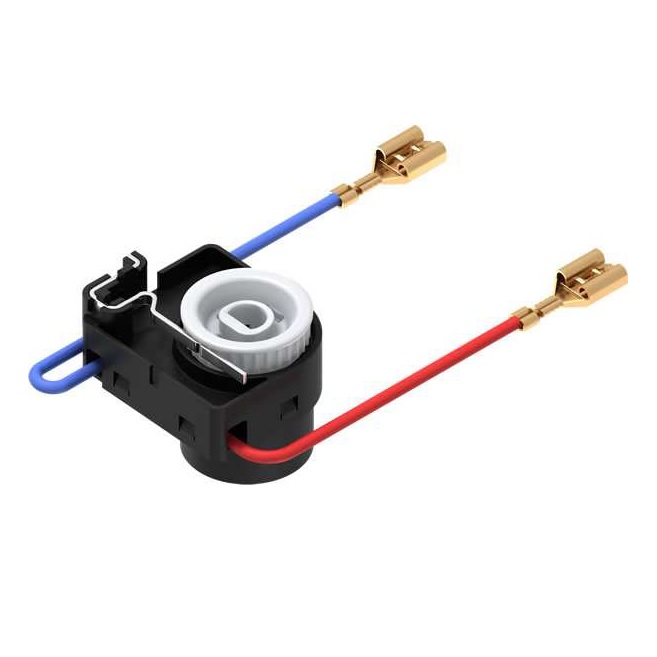

This rotatory switch is typically incorporated in gas cooking appliances, where it is located behind the control panel fitted over the gas tap.
Type 062 is designed to work with a tap manufactured by Isphording.
For Application Advice
Please Call
Please Call
- 01684 566163
Method of actuating: rotary (single pole)
IP protection rating: IP 40
Suitable for degree of pollution: for use in a dirty situation
For use in: Class I appliance
Ambient air temperature: 0ºC to 120ºC, including the actuating member
Actuation: indirect
Nature of supply: AC, 50 or 60 Hz (50 to 60 Hz)
Rated voltage: 250 V
Rated current: 0.1 A
Nature of load: resistive (cos phi greater than 0.95)
Connections: by firmly fastened flexible cables or cable chain
Cables: flexible, with 0.5 mm² cross-section
CE Compliant: to IEC 1058
Number of operating cycles: for frequent operation; 50,000 operating cycles under test conditions
Circuit disconnection: micro-disconnection
Proof tracking index: 250 V
Switch category: category D
Resistance to fire of all plastic parts: 850ºC glow wire test
Applicable standards: EN 61058 and IEC 1058
This one pole switch is used to be incorporated in appliances (i.e. gas cookers between the knob and the gas tap), where small currents at 250V AC and high ambient temperatures are frequently operated (i.e. spark ignition).
Usually supplied connected in a chain of flexible non-rewirable cables. A variable number of switches can be interconnected in parallel with one or both wires in common, in series, etc.
At the moment only one coupling adapted to one gas tap is available.
Indirect actuation by the gas tap’s plunger.
