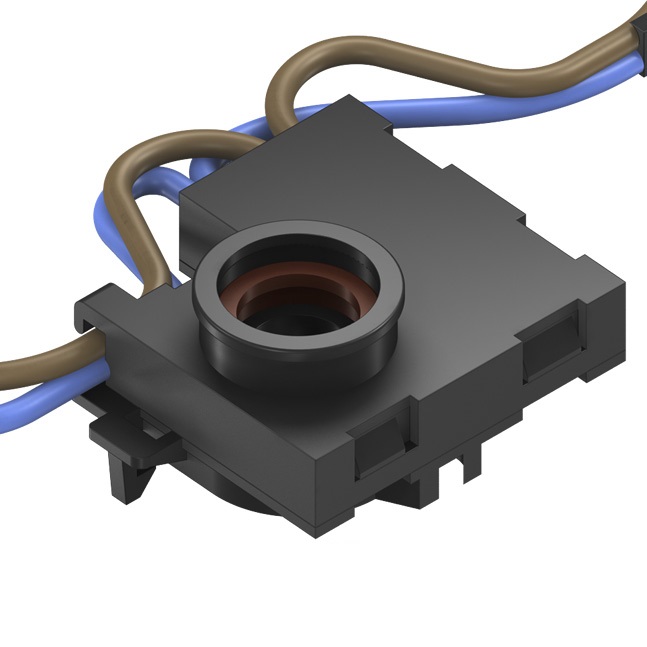

This biased push-button switch is typically incorporated in gas cooking appliances, where it is located behind the control panel fitted over the gas tap.
Type 053 is designed to work with the tap family CAM 17526, manufactured by Copreci.
Method of actuating: push-button (single pole), biased
IP protection rating: IP 10
Suitable for degree of pollution: for use in a dirty situation
For use in: Class I appliance
Ambient air temperature: 0ºC to 120ºC, including the actuating member
Actuation: indirect
Nature of supply: AC, 50 or 60 Hz (50 to 60 Hz)
Rated voltage: 250 V
Rated current: 0.1 A
Nature of load: resistive (cos phi greater than 0.95)
Connections: by firmly fastened flexible cables or cable chain
Cables: flexible, with 0.5 mm² cross-section
CE Compliant: to IEC 1058
Number of operating cycles: for frequent operation; 50,000 operating cycles under test conditions
Circuit disconnection: micro-disconnection
Proof tracking index: 250 V
Switch category: category D
Resistance to fire of all plastic parts: 850ºC glow wire test
Applicable standards: EN 61058 and IEC 1058
This biased single-pole switch is used in appliances (e.g. gas cookers between the knob and the gas tap), where small currents at 250V AC and high ambient temperatures are frequently operated (i.e. spark ignition). Usually supplied connected in a chain of flexible non-rewirable cables. A variable number of switches can be interconnected in parallel with one or both wires in common, in series, etc. Directly operated (or indirectly, via a custom-designed spring). Wiring, and if requested, the spring, are custom designed. The switch itself is standard and marked with various international conformity marks.
