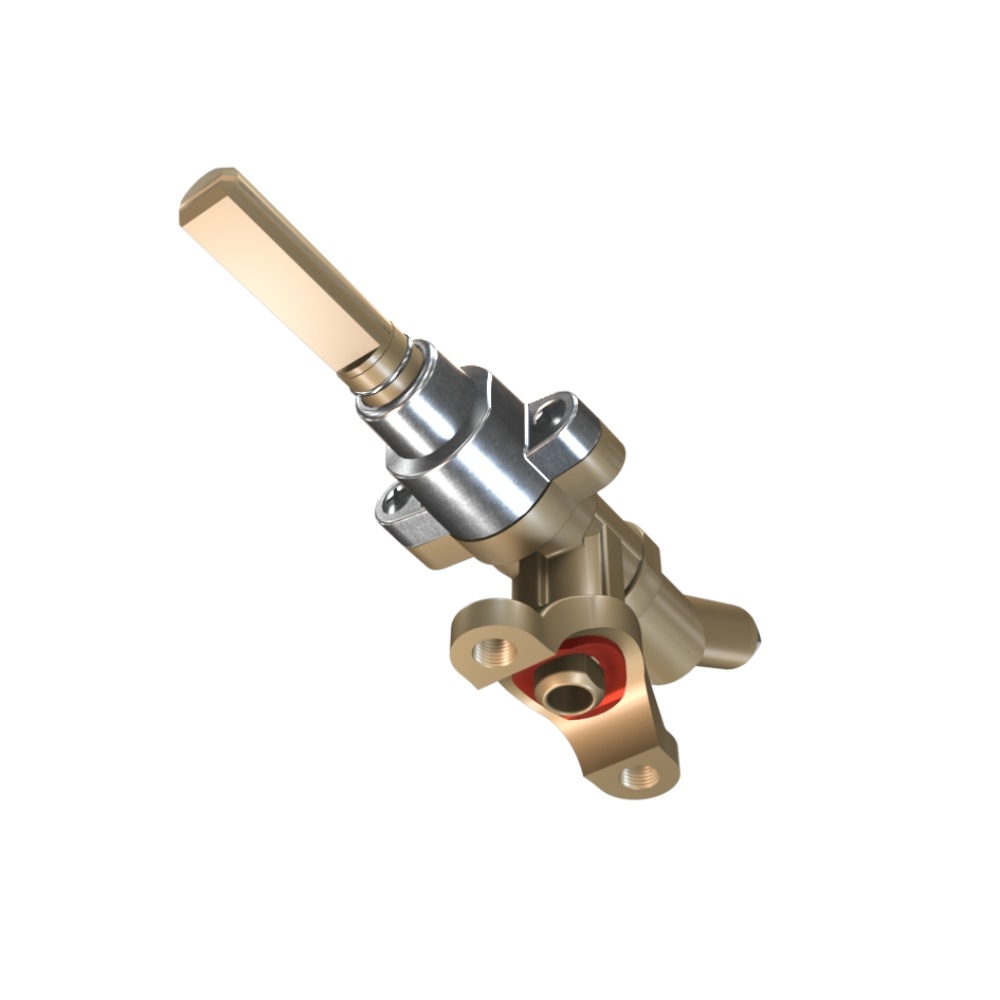

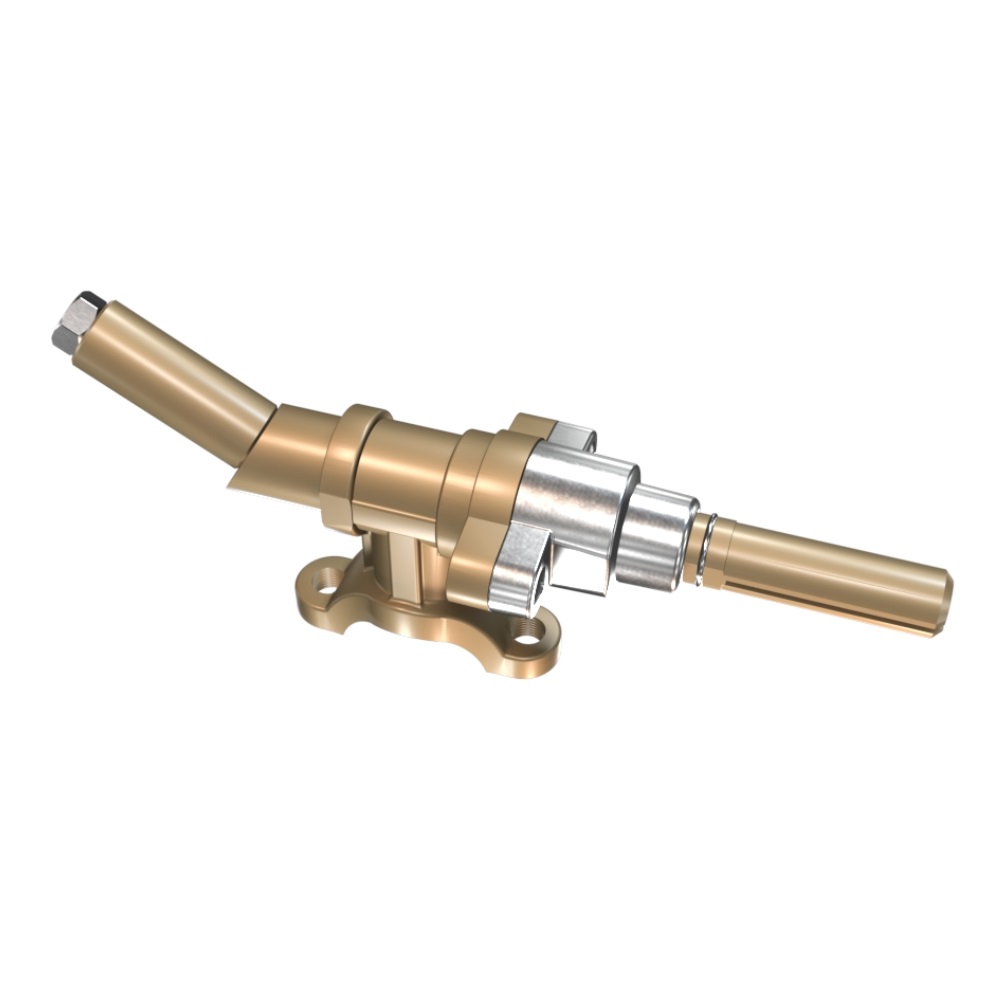

ART.101 Series
ART.101 Series
For BBQ and Camping Stove
Adjustable clamp-on gas valve
Customizable
For Application Advice
Please Call
Please Call
- 01684 566163
CE Approval: in accordance with GAR EU/2016/426 – Certificate N°: CE-0085AQ0788
- Working temperature: 0°C – 150°C / 0°C – 80°C
- Max working pressure: 7kPa (65 mbar)
- Working angular rotation: 90°-160°-225°
- Position of maximum: 90°
- Gas inlet connection: flange clamp screwing
- Gas outlet connection: various
- Knob shaft connection: max. Ø 8
- Fitted with: adjustable low rate screw
- Applications: cooking
- Group: 2
- Installation position: any
- Kind of gas: I, II, III
- Tap endurance test: 40.000 (CE) – 10.000 (CSA)
Flow rates: inlet Ø 16 manifold/outlet ¼
Flow rate index: > 95% of 340* L/h
Reduced flow rate (min. or by-bass): value declared + 5 %; max. 80* L/h
* = (Air – ΔP 1 mbar – inlet pressure: 20 mbar)
