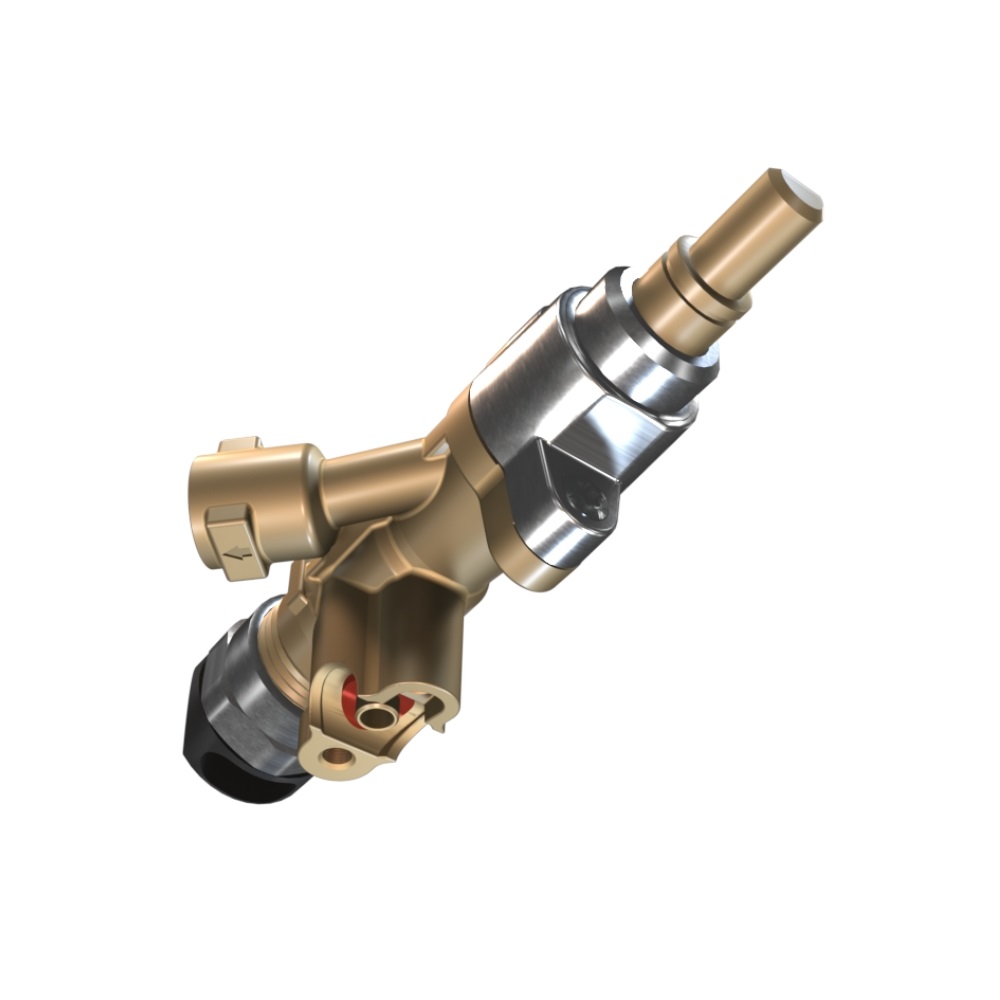

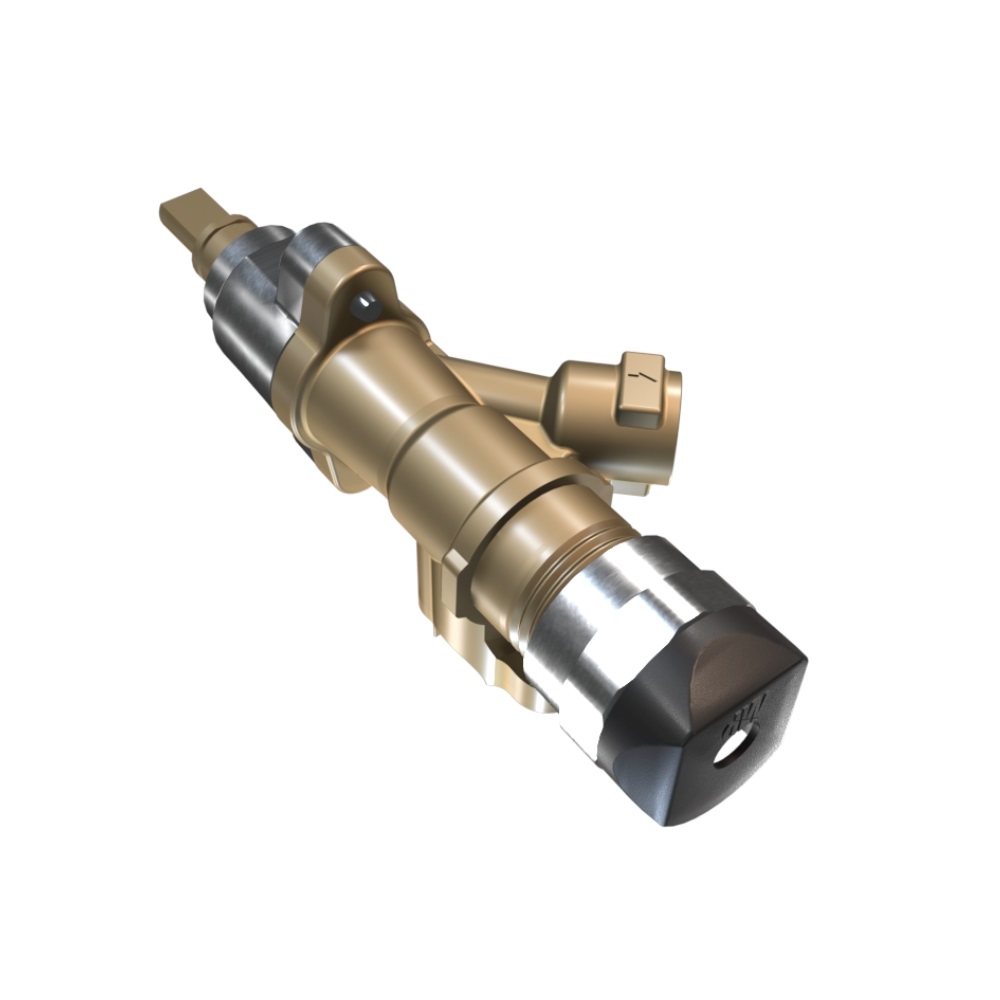

ART.208 Series
ART.208 Series
For Indoor Blue Flame Heater
Safety gas valve with ‘off’ position
Customizable product
For Application Advice
Please Call
Please Call
- 01684 566163
CE Approval: in accordance with GAR EU/2016/426 – Certificate N°: CE-0085AQ0789
- Working temperature: 0°C – 150°C / 0°C – 80°C
- Max working pressure: 7kPa (65 mbar)
- Working angular rotation: 160°
- Position of maximum: 90°
- Gas inlet connection: flange handle screw connection or biconical ring screw connection or internal thread
- Gas outlet connection: various
- Knob shaft connection: max. Ø 8
- Fitted with: safety device for flame control
- Applications: cooking, baking, and grilling
- Group: 2
- Kind of gas: I, II, III
- Tap endurance test: 40.000 (CE)
- Safety device endurance test: 10.000 (CE)
