Miniature Modules

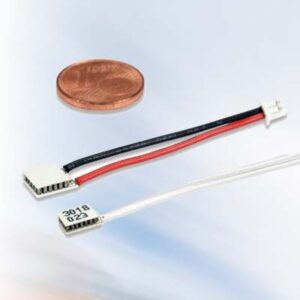

If only a specific area needs to be heated/cooled down slightly, our Miniature modules are an optimal solution. With a size of 4.9×4.9mm up to 13.2×13.2mm, they would fit for most applications.
Miniature TEM´s are suitable for applications like laser diode cooling, infrared systems, electro-optics and electronic equipment, and other low-wattage applications.
| Part No. | Model No. | Th = 27°C | Dimensions (mm) | |||||||
| I max (A) | Q max (W) | V max (V) | ΔT max (°C) | N | A | B | C | D | ||
| TEM47420 | TES1-018008 | 0.8 | 0.97 | 2.1 | 67 | 18 | 4.9 | 4.9 | 6.5 | 2.4 |
| TEM47421 | TES1-032008 | 0.8 | 1.72 | 3.8 | 67 | 32 | 6.5 | 6.5 | 8.1 | 2.4 |
| TEM47422 | TES1-066008 | 0.8 | 3.56 | 7.9 | 67 | 66 | 9.8 | 8.9 | 11.4 | 2.4 |
| TEM47423 | TES1-007012 | 1.2 | 0.57 | 0.8 | 67 | 7 | 4.0 | 4.0 | 4.0 | 2.7 |
| TEM47424 | TES1-017012 | 1.2 | 1.38 | 2.0 | 67 | 17 | 6.6 | 6.6 | 6.6 | 2.7 |
| TEM47425 | TES1-018012 | 1.2 | 1.46 | 2.1 | 67 | 18 | 6.0 | 6.2 | 7.2 | 2.7 |
| TEM47426 | TES1-024012 | 1.2 | 1.97 | 2.7 | 67 | 24 | 6.6 | 8.8 | 10.8 | 2.5 |
| TEM47427 | TES1-030012 | 1.2 | 2.43 | 3.6 | 67 | 30 | 6.2 | 10.3 | 12.3 | 2.3 |
| TEM47428 | TES1-031012 | 1.2 | 2.51 | 3.7 | 67 | 31 | 8.8 | 8.8 | 8.8 | 2.7 |
| TEM47429 | TES1-031012 | 1.2 | 2.51 | 3.7 | 67 | 31 | 8.8 | 8.8 | 11.0 | 2.7 |
| TEM47430 | TES1-065012 | 1.2 | 5.34 | 7.8 | 67 | 65 | 13.2 | 12.1 | 13.2 | 2.7 |
| TEM47431 | TES1-068012 | 1.2 | 5.59 | 8.2 | 67 | 68 | 13.2 | 13.2 | 13.2 | 2.7 |
| TEM47432 | TES1-007015 | 1.5 | 0.71 | 0.8 | 67 | 7 | 4.0 | 4.0 | 4.0 | 2.4 |
| TEM47433 | TES1-017015 | 1.5 | 1.72 | 2.0 | 67 | 17 | 6.6 | 6.6 | 6.6 | 2.4 |
| TEM47434 | TES1-018015 | 1.5 | 1.82 | 2.1 | 67 | 18 | 6.0 | 6.2 | 7.2 | 2.4 |
| TEM47435 | TES1-024015 | 1.5 | 2.42 | 2.7 | 67 | 24 | 6.6 | 8.8 | 10.8 | 2.2 |
| TEM47436 | TES1-030015 | 1.5 | 3.03 | 3.6 | 67 | 30 | 6.2 | 10.3 | 12.3 | 2.1 |
| TEM47437 | TES1-031015 | 1.5 | 3.13 | 3.7 | 67 | 31 | 8.1 | 8.1 | 8.1 | 2.4 |
| TEM47438 | TES1-031015 | 1.5 | 3.13 | 3.7 | 67 | 31 | 8.8 | 8.8 | 8.8 | 2.4 |
| TEM47439 | TES1-031015 | 1.5 | 3.13 | 3.7 | 67 | 31 | 8.8 | 8.8 | 11.0 | 2.4 |
| TEM47440 | TES1-065015 | 1.5 | 6.57 | 7.8 | 67 | 65 | 13.2 | 12.1 | 13.2 | 2.4 |
| TEM47441 | TES1-068015 | 1.5 | 6.87 | 8.2 | 67 | 68 | 13.2 | 13.2 | 13.2 | 2.4 |
| TEM47442 | TES1-007020 | 2.0 | 0.95 | 0.8 | 67 | 7 | 4.0 | 4.0 | 4.0 | 2.2 |
| TEM47443 | TES1-017020 | 2.0 | 2.30 | 2.0 | 67 | 17 | 6.6 | 6.6 | 6.6 | 2.2 |
| TEM47444 | TES1-018020 | 2.0 | 2.43 | 2.1 | 67 | 18 | 6.0 | 6.2 | 7.2 | 2.2 |
| TEM47445 | TES1-024020 | 2.0 | 3.32 | 2.7 | 67 | 24 | 6.6 | 8.8 | 10.8 | 2.0 |
| TEM47446 | TES1-030020 | 2.0 | 4.04 | 3.6 | 67 | 30 | 6.2 | 10.3 | 12.3 | 1.8 |
| TEM47447 | TES1-031020 | 2.0 | 4.18 | 3.7 | 67 | 31 | 8.1 | 8.1 | 8.1 | 2.2 |
| TEM47448 | TES1-031020 | 2.0 | 4.18 | 3.7 | 67 | 31 | 8.8 | 8.8 | 8.8 | 2.2 |
| TEM47449 | TES1-031020 | 2.0 | 4.18 | 3.7 | 67 | 31 | 8.8 | 8.8 | 11.0 | 2.2 |
| TEM47450 | TES1-065020 | 2.0 | 8.76 | 7.8 | 67 | 65 | 13.2 | 12.1 | 13.2 | 2.2 |
| TEM47451 | TES1-068020 | 2.0 | 9.16 | 8.2 | 67 | 68 | 13.2 | 13.2 | 13.2 | 2.2 |
All specifications are subject to change without notice.
